Driver’s desk reading lights

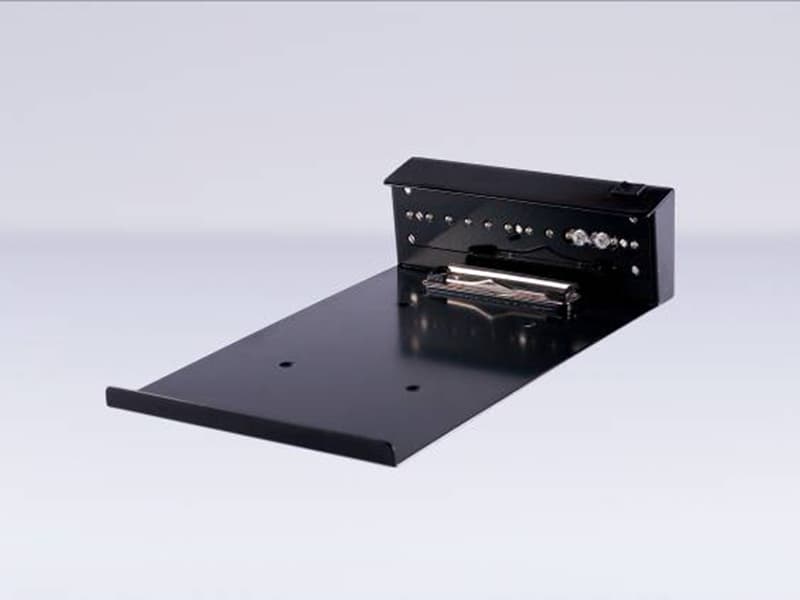

ST 172 lectern light
- Use
- Driver’s desk and workspace
- Structure
- Sheet steel, powder-coated
- With clipboard
- Dimensions
- Length 220mm
- Height 353mm
- Depth 80,3 mm
- Voltage
- 20-30VDC
- Light values / standards
- Can be dimmed with switch

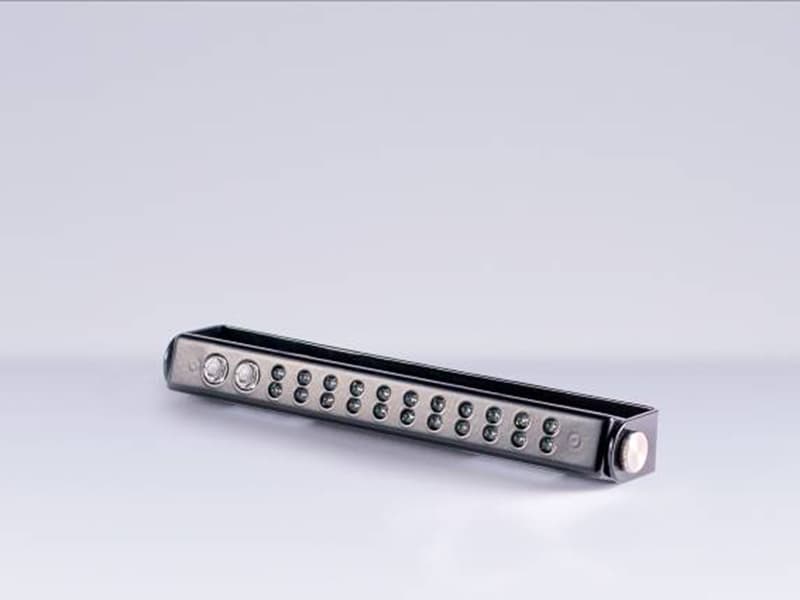

ST 224 instrument panel lamp
- Use
- Swivel-mounted lectern and instrument panel lamps
- Structure
- Metal casing
- Dimensions
- Length 222mm
- Height 24mm
- Depth 38,5 mm
- Voltage
- 110VDC +25%-30%
- Light values / standards
- Dimmable

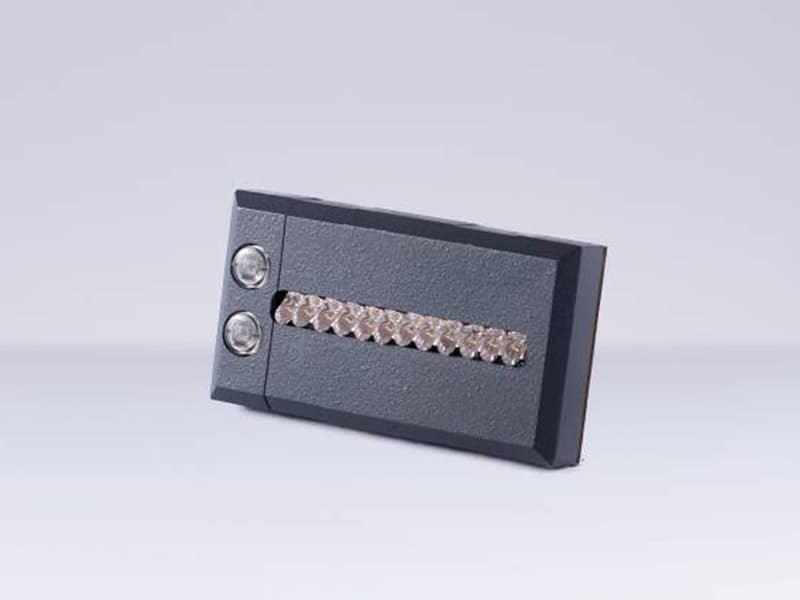

WL 130 driver’s desk light
- Use
- Driver’s and assistant driver’s lights
- Structure
- Plastic casing
- Dimensions
- Length 100mm
- Height 54mm
- Depth 18mm
- Voltage
- 110VDC, 24VDC, je +25%-30%
- Light values / standards
- Single-row or twin-row LED light
- Can be dimmed and/or with switch

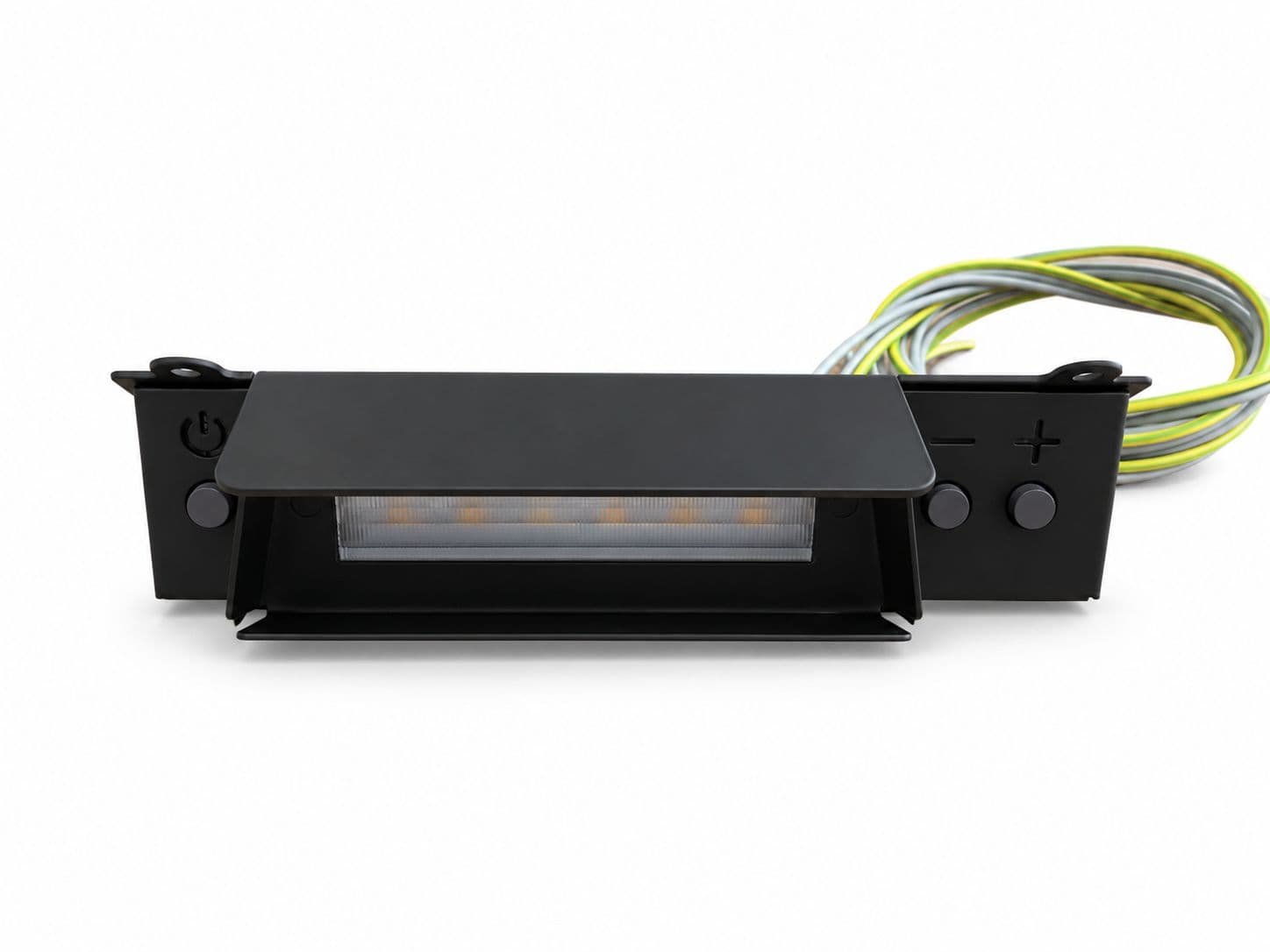

WL 138 driver’s desk light
- Use
- Desk light, driver’s timetable light
- Structure
- Aluminium casing
- With shades to reduce stray light on the screen
- Voltage
- 110VDC, 24VDC, each +25%-30%
WL 58.LED spot light
- Use
- Driver’s compartment and entry lights
- Structure
- Swivel-mounted ball
- Dimensions
- Diameter 80mm
- Depth 69,1mm
- Voltage
- 24VDC, +25%-30%
- Light values / standards
- 1 x high-power LED
- 30° emission angle
