External lights for trams

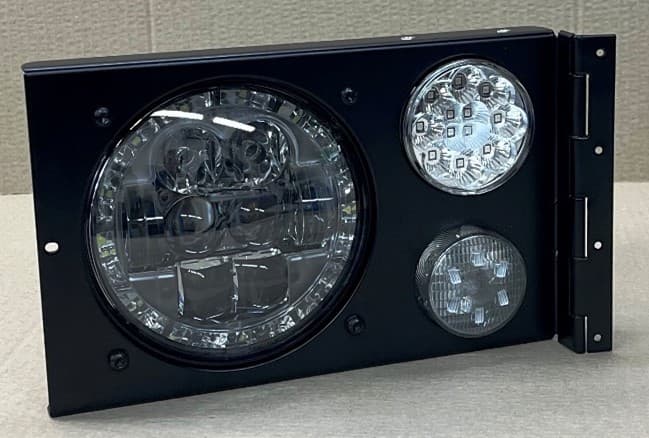

Tram Light SL 108 Refitting

SL_108_Umrüstung
SL_108_Umrüstung_außen

Use:

  • Main headlights with signaling functions

  • Ideal replacement for 5 ¾ inch H4

Structure:

  • LED main headlight 144mmD with daytime running lights
  • Brake tail light
  • Flashing light
  • Hinged support plate
  • Plug-and-play replacement for existing conventional light

Dimensions:

  • 260mx160mmx93mm

Voltage:

  • 24VDC

Light values / standards:

  • ECE
  • EN 15153-3
  • EN 50121-3-2
  • IEC 61373

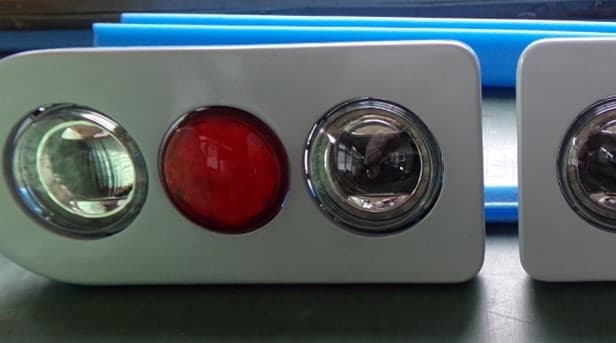

Metro Light SL 128 Refitting

SL_128_Umrüstung
SL_128_Umrüstung_außen

Use:

  • Main headlights with signaling functions

Structure:

  • LED low beam and high beam headlights
  • Brake tail light
  • Flashing light
  • Common front frame for installation into the existing environment

Dimensions:

  • 350mx160mmx130mm

Voltage:

  • 24VDC

Light values / standards:

  • ECE
  • EN 15153-3
  • EN 50121-3-2
  • IEC 61373

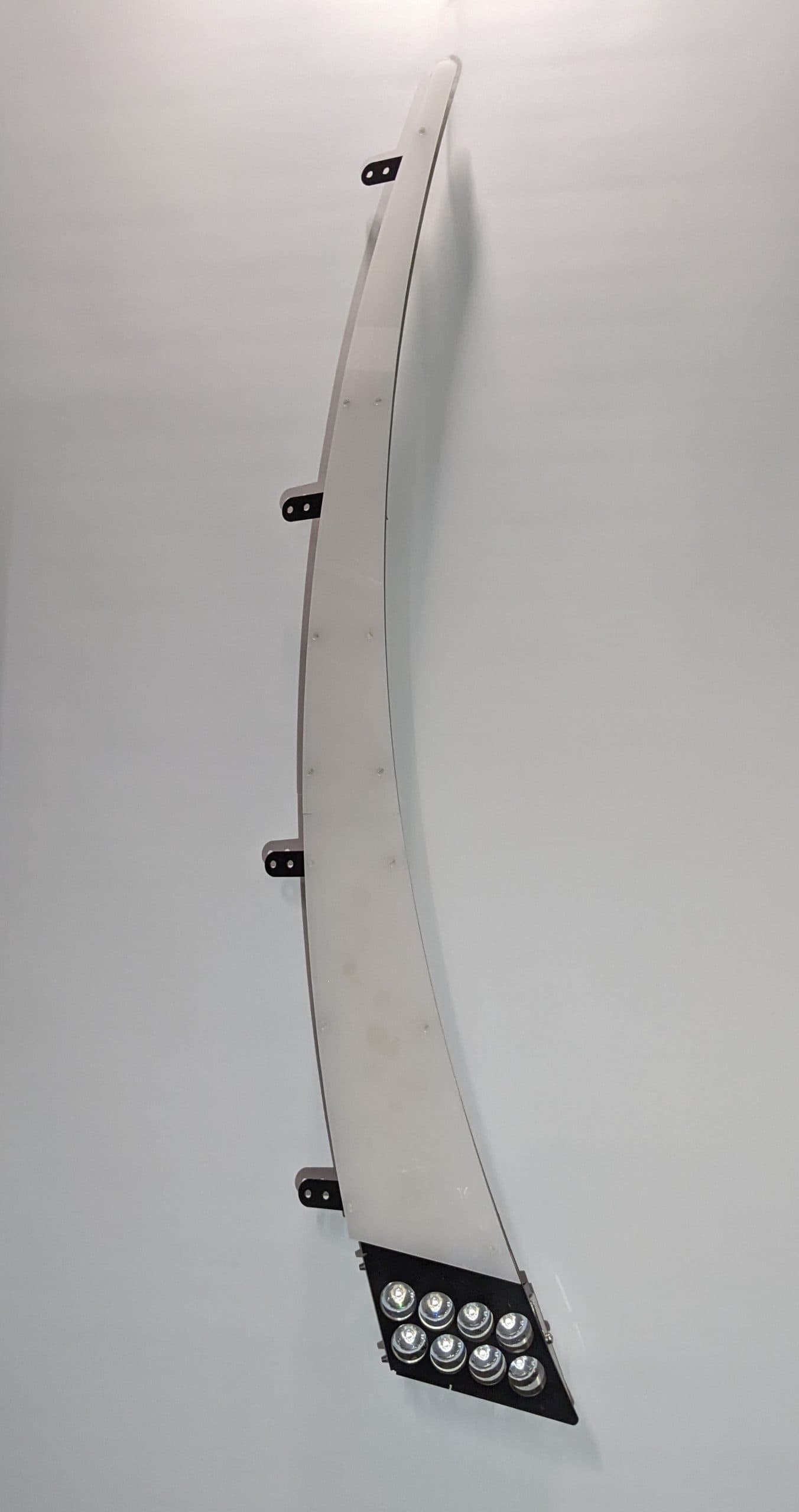

Metro Light SL 434

Use:

  • High beam headlight and signaling functions for metro

Structure:

  • LED light modules on a support plate
  • Wide light for homogeneous radiation
  • Flat design for small installation space

Dimensions:

  • Custom design
  • 282 x 190 mm

Voltage:

  • 24VDC +25%-30%

Light values / standards:

  • Based on EN 15153-3

  • EN 50121-3-2
  • IEC 61373

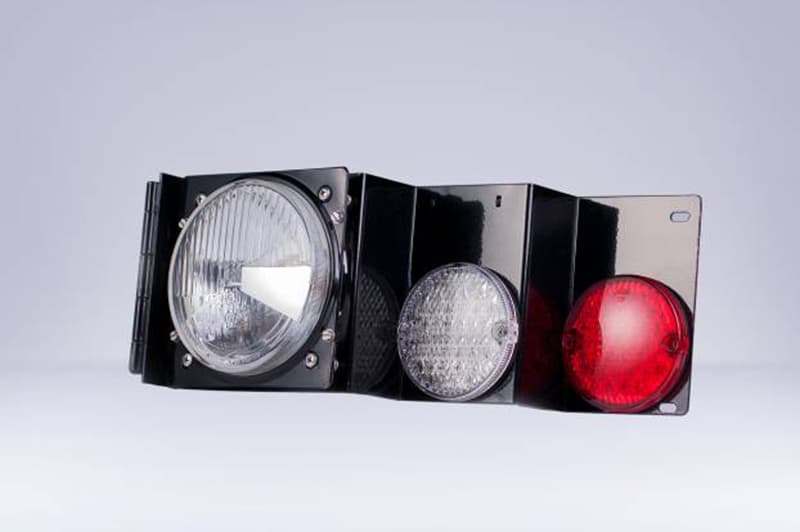

SL 253 tram lights

Use:

  • Upgrades of LED brake light / tail light and turn signal indicator

Structure:

  • Light module on support plate

Dimensions:

  • Length 363mm
  • Height 150mm
  • Depth 160mm

Voltage:

  • 24VDC

Light values / standards:

  • ECE

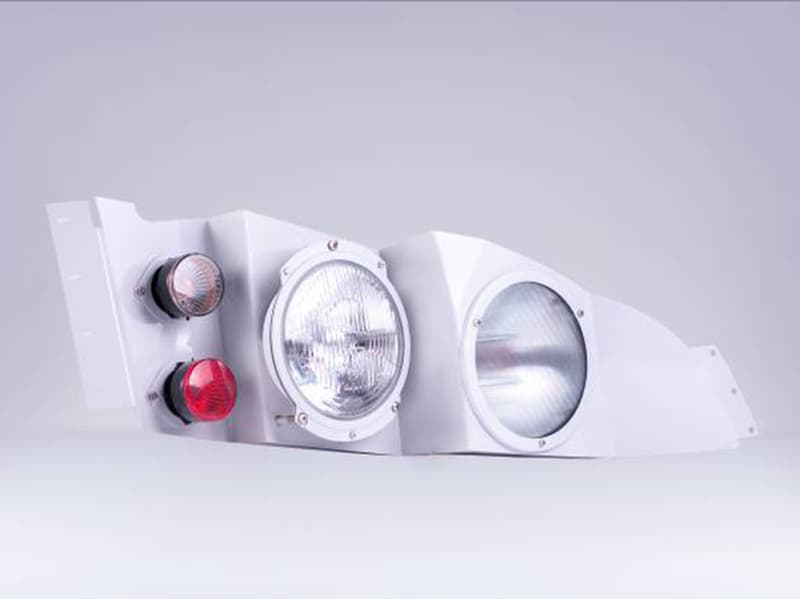

SL 271 tram-train lights

Use:

  • Tram and tram-train full lights, marker / tail light, headlight
  • Indicator and brake light / tail light

Structure:

  • Modules on support plate
  • Cast front frame and bonded toughened safety glass panes

Dimensions:

  • 710x404x224 mm

Voltage:

  • 24V

Light values / standards:

  • UIC 534/532, ECE

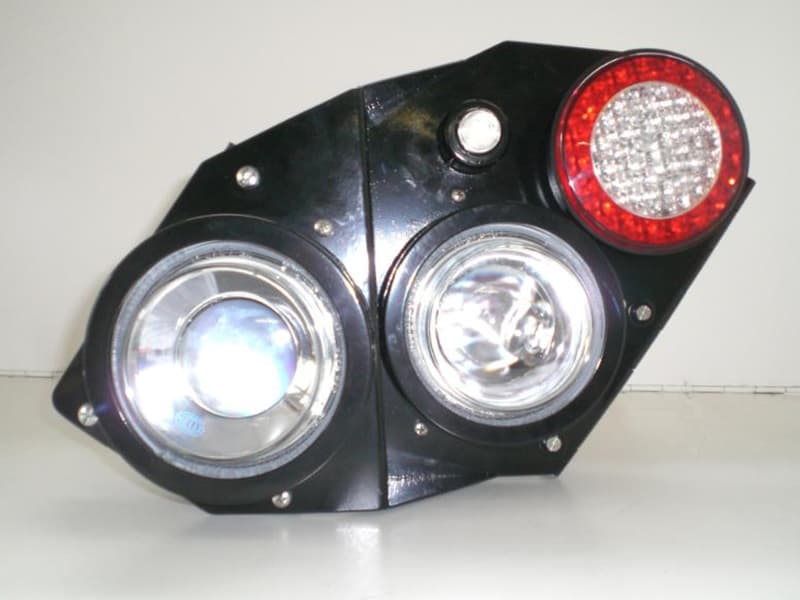

SL 316 metro lights

Use:

  • Metro main lights
  • Full beam / dimmed headlight
  • Brake / tail light and turn signal indicator

Structure:

  • Modules on support plate

Dimensions:

  • Length 363mm

Voltage:

  • 24VDC

Light values / standards:

  • ECE

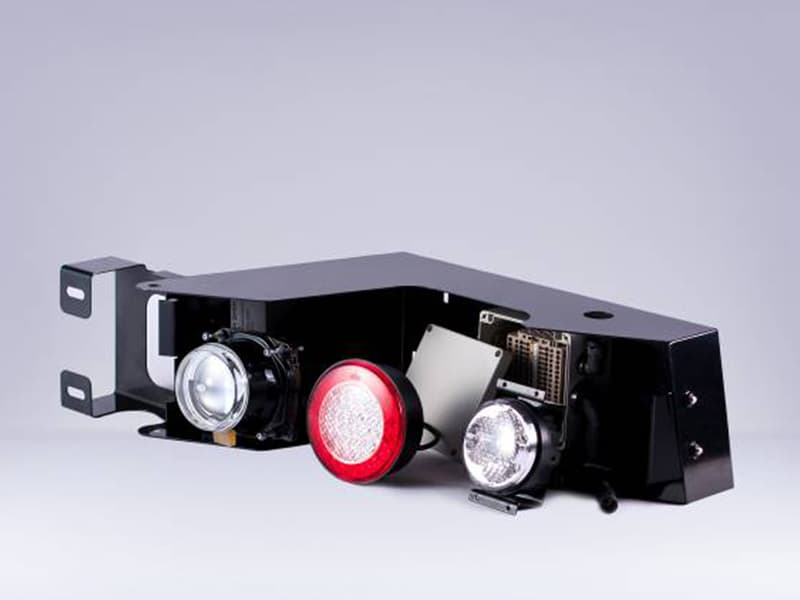

SL 363 tram lights

Use:

  • Daytime running light
  • Brake / tail light and turn signal indicator
  • Bi-LED full and dimmed headlight

Structure:

  • Stainless steel case

Dimensions:

  • 642x155x325 mm

Voltage:

  • 24VDC

Light values / standards:

  • ECE

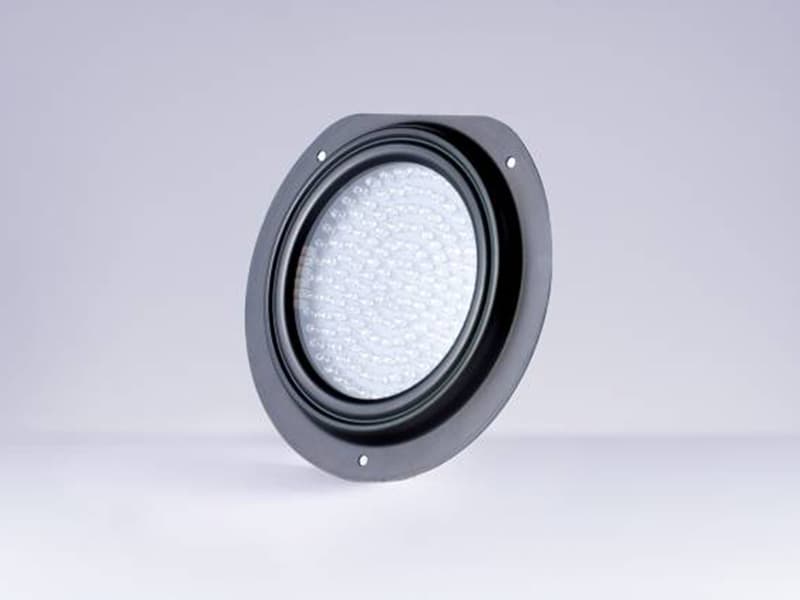

SL 375 tram-train lights

Use:

  • Tram-train marker / tail lights

Structure:

  • LED circuit boards in aluminium casing

Dimensions:

  • Diameter 218mm
  • Depth 103mm

Voltage:

  • 24VDC +25%-30%

Light values / standards:

  • UIC 534/532

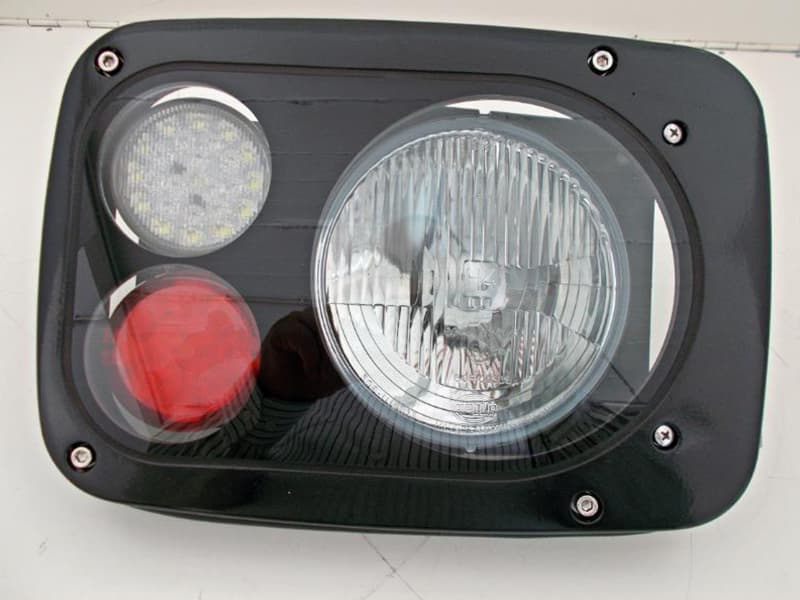

SL 422 tram lights

Use:

  • Lower tram main lights
  • Upgrade solution for SL 62 FL

Structure:

  • LED daytime running light and turn signal indicator
  • LED brake / tail light
  • H4 headlight and screen-printed glass pane

Dimensions:

  • 372x160mm

Voltage:

  • 24VDC

Light values / standards:

  • ECE, H4

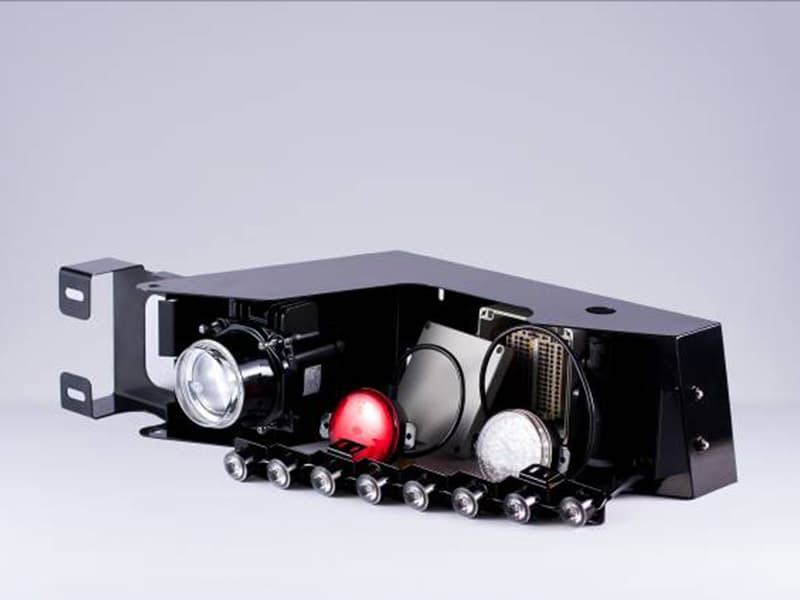

SL 423 tram lights

Use:

  • Lower tram main lights

Structure:

  • LED turn signal indicators
  • LED brake / tail light
  • Bi-LED full and dimmed headlight and 8-unit module solution for daytime running light

Dimensions:

  • 650x180x350mm

Voltage:

  • 24VDC30%

Light values / standards:

  • ECE
