Side lights and signal indicator lights
admin
2017-12-05T10:06:27+01:00
Side lights and signal indicator lights

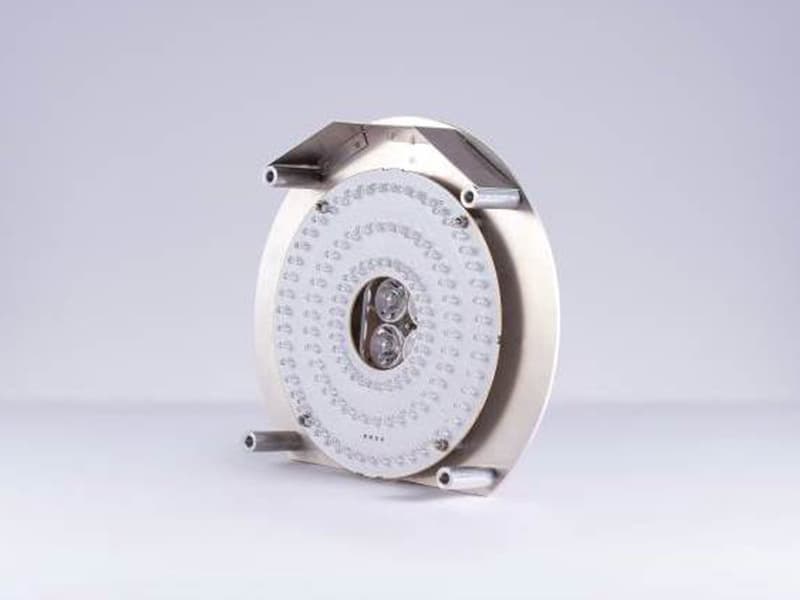

Line display and head light for tram / metro
Use:
Line display and head light for tram / metro
Structure:
LED circuit boards and headlights
Panel as glare shield
Dimensions:
Diameter 228mm
Depth 105mm
Voltage:
24VDC
Light values / standards:
Line colours: green, yellow, orange
Dimmed headlight

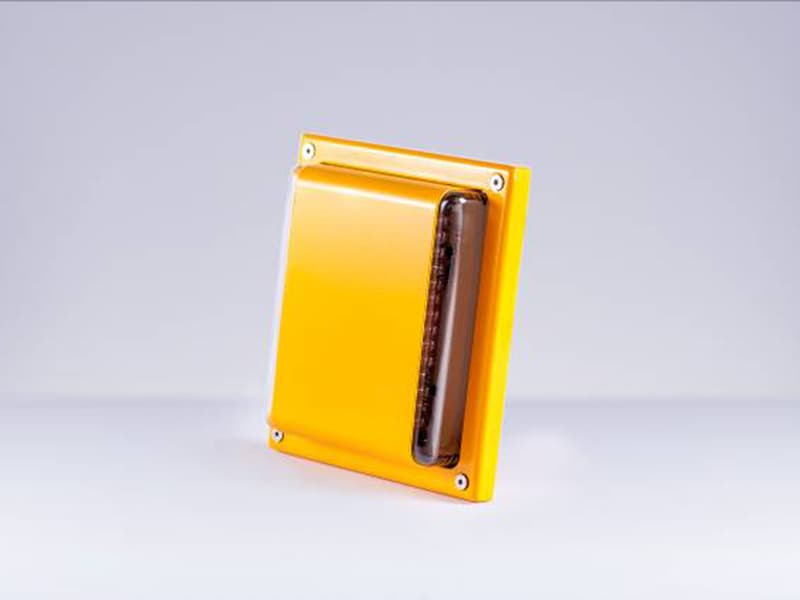

ST 106 indicator lights
Use:
Door display, lateral warning lights, tram / metro
Structure:
Metal casing
Cover against phantom light
Dimensions:
Length 103mm
Width 139mm
Height 119mm
Voltage:
110VDC
Light values / standards:
Two-tone LED
ST 137 D direction indicator light
Use:
Lateral direction indicator lights
Structure:
Baseplate with sealing to bodywork construction
Plastic cover, various colours possible
Dimensions:
192x70x46mm
Voltage:
24V, 12V
Light values / standards:
2 x B15s, 10W, measured as per ECE R6 Cat 5

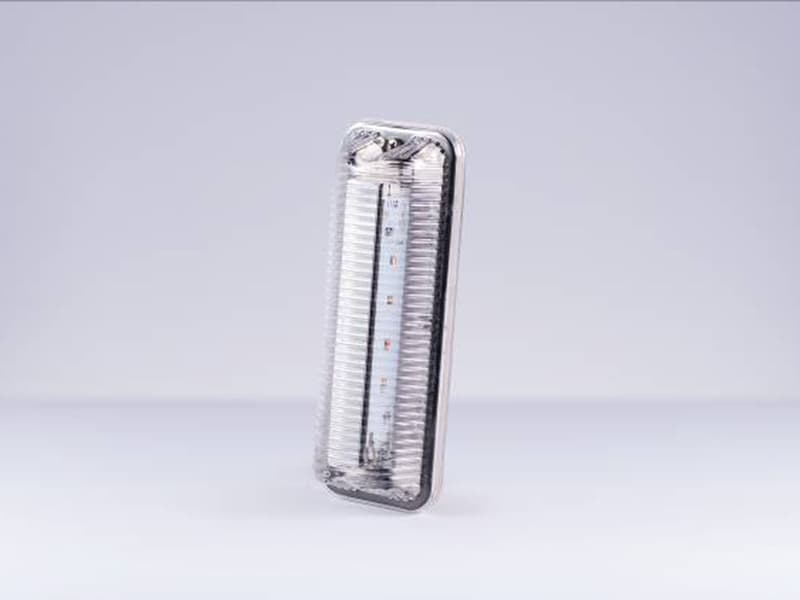

ST 137.LED direction indicator light
Use:
Lateral direction indicator lights
Structure:
Baseplate with sealing to bodywork construction
Plastic cover
Dimensions:
192x70x45mm
Voltage:
24VDC +25%-30%
Light values / standards:
Inspected as per ECE R6 Cat 5

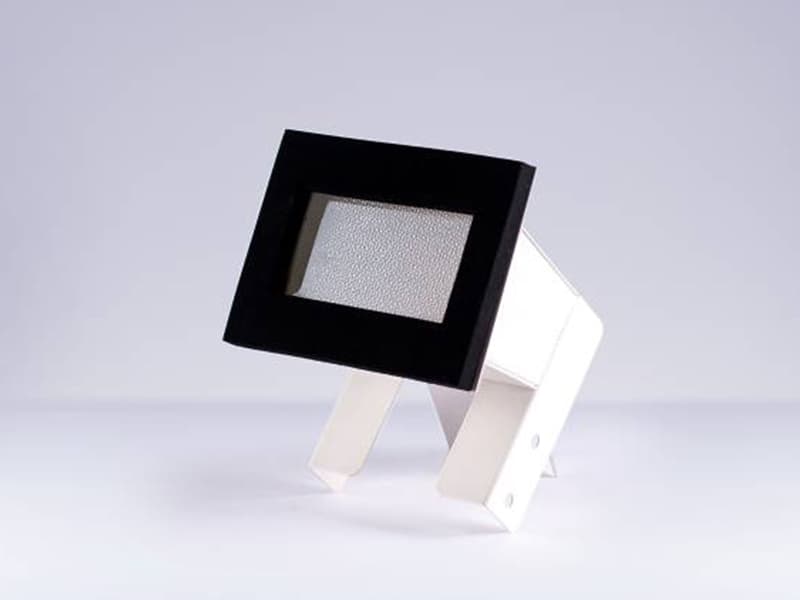

ST 144 headlights
Use:
Headlights and step lights, tram / metro
Structure:
Circuit board in steel casing, front panel
Dimensions:
Length 130mm
Width 100mm
Voltage:
24VDC +25%-30%

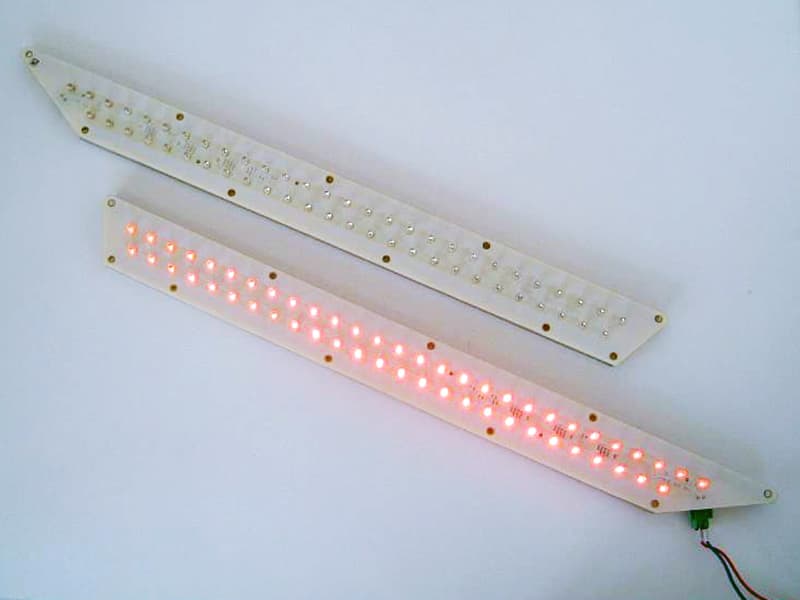

ST 166 strip light
Use:
Tail light and effect light
Structure:
Circuit board on stainless steel bracket
Installation in protected space
Dimensions:
Length approx. 600mm
Voltage:
26V +-10%
Light values / standards:
Approx. 90 cd
ST 230 signal indicator lights
Use:
Signal indicator lights, shunting radio lights
Structure:
Baseplate with sealing to bodywork construction
Plastic cover
Dimensions:
192x66x31mm
Voltage:
24VDC+25%-30%
Light values / standards:
White / Amber – other colours also possible
ST 232 direction indicator light
Use:
Lateral direction indicator lights
Structure:
Baseplate with sealing to bodywork construction
Plastic cover
Dimensions:
192x66x31mm
Voltage:
24VDC+25%-30%
Light values / standards:
KBA authorisation as per ECE R6 Cat. 5 and Cat. 6

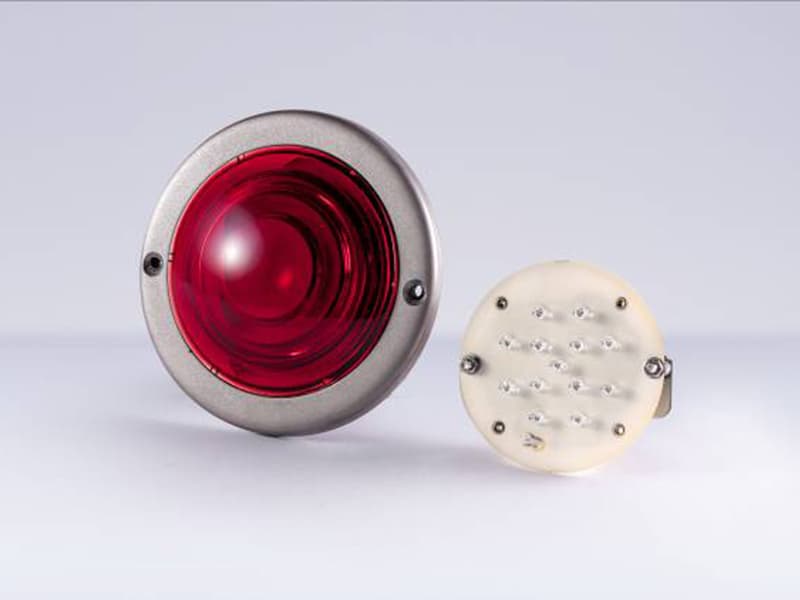

WL UE 1 door warning lights
Use:
Door warning lights
Structure:
Fresnel lens
Rear LED bracket
Dimensions:
Diameter 130mm
Depth 45,3mm
Voltage:
110VDC
Light values / standards:
Red light
