Interior lights

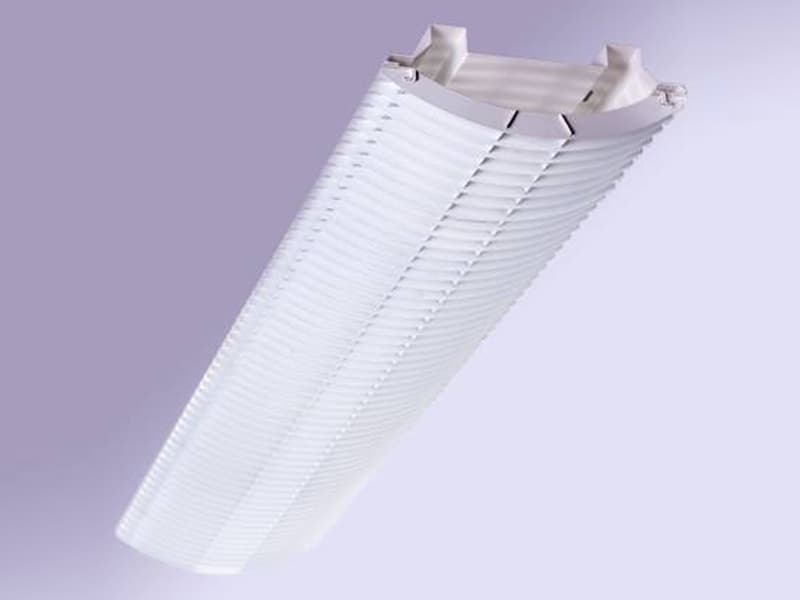

RL 117 ceiling lights

Use:

  • Tram and metro ceiling lights

Structure:

  • Baseplate made of coated sheet steel
  • Lamella louvre made from coated aluminium

Dimensions:

  • Length 437,5mm
  • Width 240mm
  • Height 84,5mm

Voltage:

  • Various

Light values / standards:

  • 1 x 36W

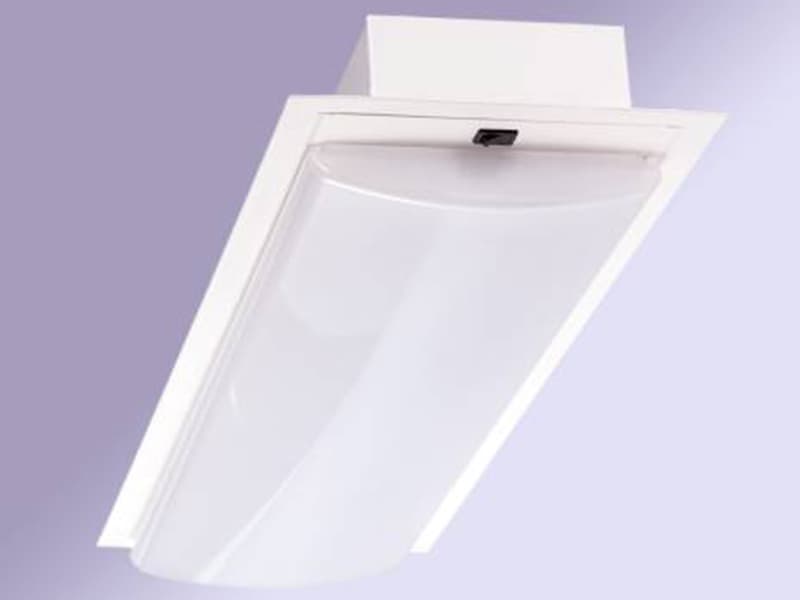

RL 119 driver’s compartment and engine room lights

Use:

  • Ceiling lights

Structure:

  • Casing made from powder-coated sheet steel
  • Cover made from clouded Makrolon longlife certificate S3-ST2-SR2
  • With circuit breaker, 0.1 marked
  • Wired to the clamp

Dimensions:

  • Length 437,5mm
  • Width 240mm
  • Height 84,5mm

Voltage:

  • Ballast unit 110V/18W

Light values / standards:

  • 18W

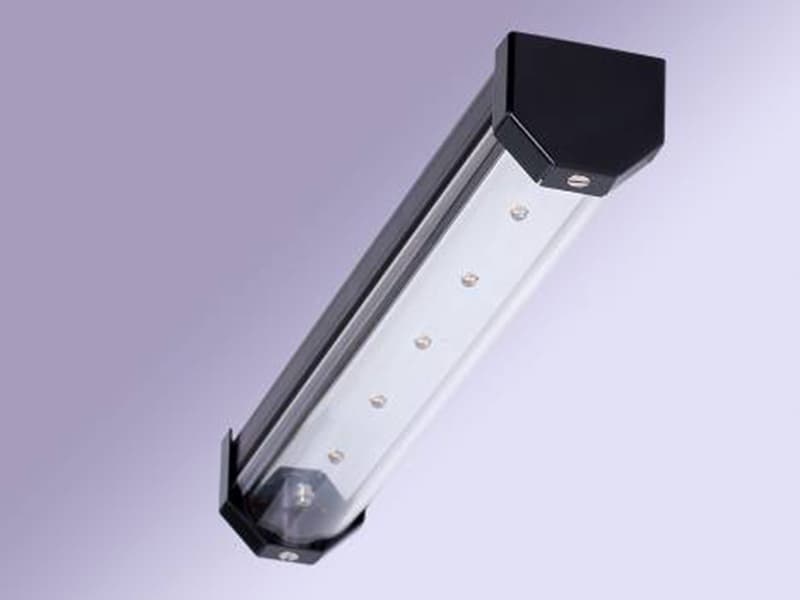

RL 122.LED engine room lights

Use:

  • Engine rooms, switch cabinets

Structure:

  • Casing made from aluminium
  • Front pane made of mineral glass for maximum fire protection

Dimensions:

  • Length 320mm
  • Width 53mm
  • Height 46mm

Voltage:

  • 24VDC+25%-30%

Light values / standards:

  • 5 high-power LED
  • EMV EN 50121-3-2

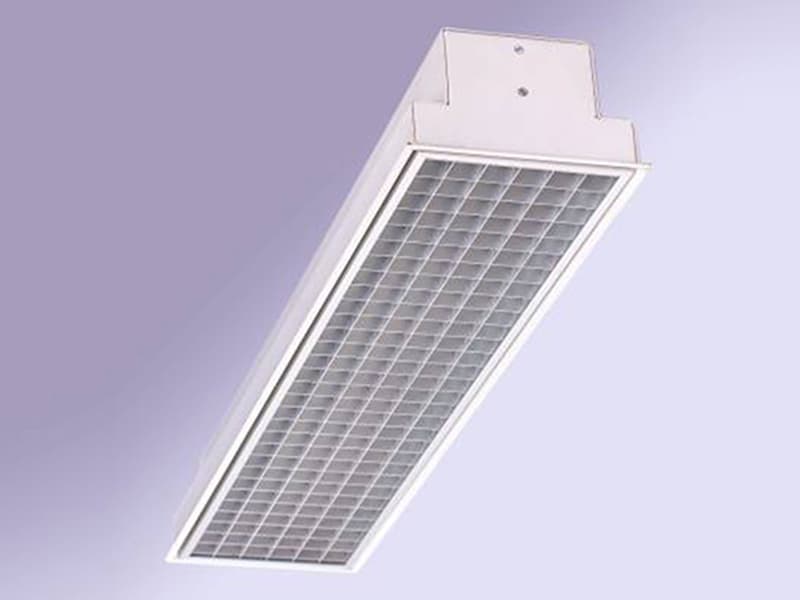

RL 85 ceiling lights

Use:

  • Flush-to-ceiling installation

Structure:

  • Casing made of white-coated sheet steel
  • Removable cross louvre made from aluminium

Dimensions:

  • Length 636mm
  • Width 107mm
  • Height 95mm

Voltage:

  • Various

Light values / standards:

  • 1 x 18W

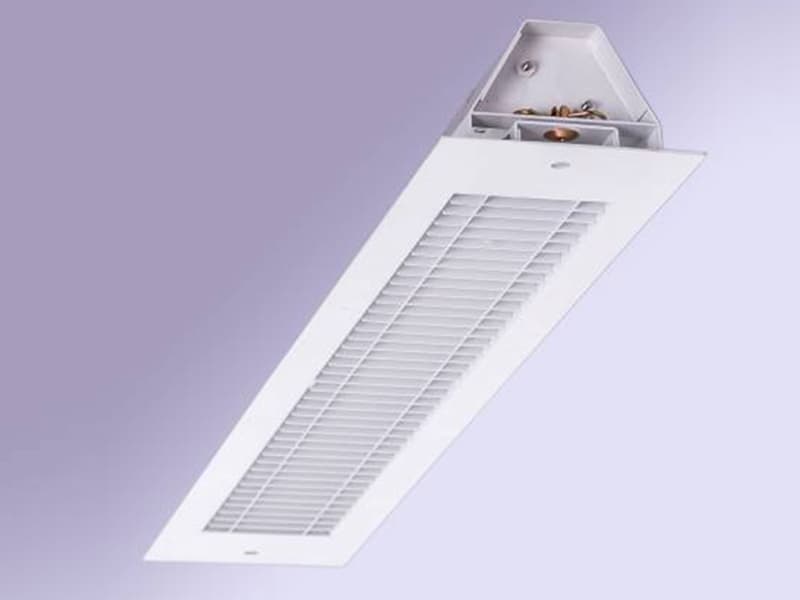

RL UE 1 driver’s compartment lights

Use:

  • Ceiling-recessed lights

Structure:

  • Louvre for maximum fire protection

Dimensions:

  • Length 684mm
  • Width 112mm
  • Height 59mm

Voltage:

  • 110V

Light values / standards:

  • 1 x 18W

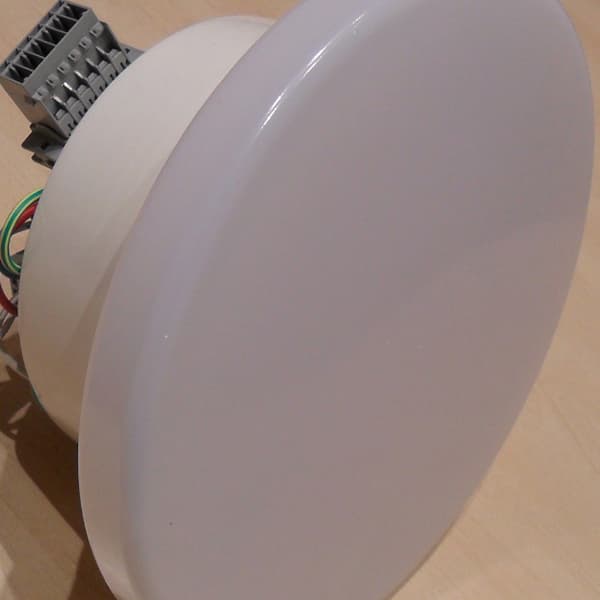

WL 128 ceiling and wall light

Use:

  • Staircases, walls

Structure:

  • Casing made from sheet steel, powder-coated
  • Makrolon covering for improved fire protection
  • Special vandalism protection

Dimensions:

  • Diameter 230mm
  • Depth 201,5mm

Voltage:

  • Various

Light values / standards:

  • 2 x 5W Dulux bulbs
